Kaba Mauer PAXOS advance –

Electronic safe lock 82753

The PAXOS advance IP safe lock (model 82753) from Kaba Mauer, now Dormakaba, meets the highest security requirements according to EN 1300 B/C/D as well as VdS classes 2, 3, and 4. It was specially developed for applications requiring maximum reliability and fail-safe operation—for example, in banks, armored personnel carriers, or high-security facilities.

This motorized, redundant locking system allows the connection of up to 12 locks, input units, and IP and I/O boxes. Up to 100 individual codes can be freely assigned per lock. Its extensive features include: delayed opening, time lock, event log for 10,000 entries, alarm connection, and an illuminated graphic display for convenient operation.

PAXOS advance IP – when security allows no compromises.

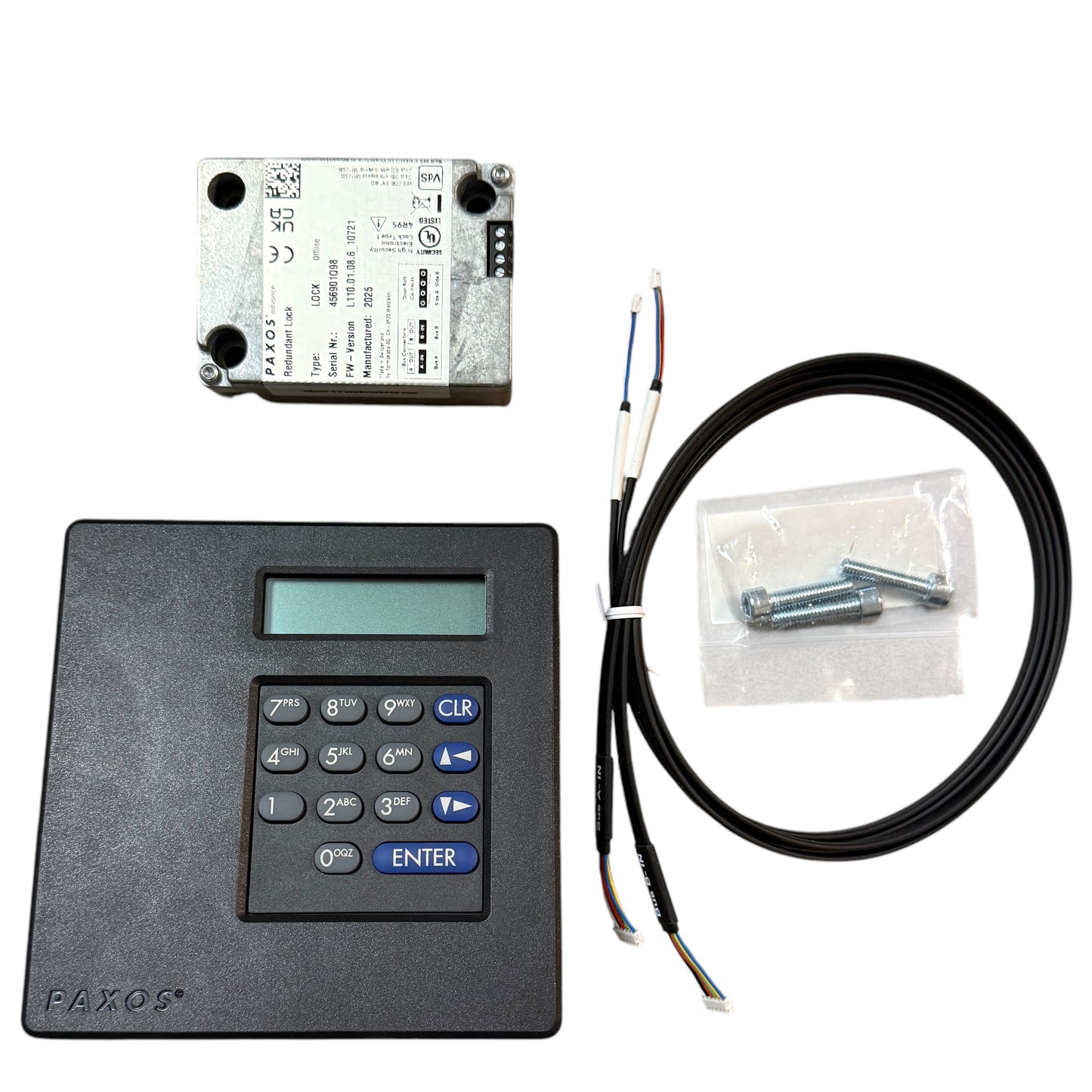

Set contents:

• Keyboard input unit – for comfortable, intuitive operation with illuminated display

• Redundant lock – for maximum reliability through double, independent lock units

• Bus cable 2 x 1.0 m (A+B) – for easy connection of lock and control unit

🔐 Code types when using ID + PIN:

• 1 master code

• 2 opening codes

• 97 freely assignable codes with individual opening and access rights

🔐 Code types when using only PIN:

• 1 master code

• 1 mutation code

• 1 time code

• 1 network code

• 2 AND codes (for four-eyes principle)

• 94 opening codes – can be used alone or with a four-eyes principle

💡 Special features for multiple locks:

• Parallel mode : simultaneous opening of several locks

• Partial closure : selective closure of individual areas

Input unit:

• Robust housing made of black plastic

• Silicone rubber keyboard for durable and precise operation

• Integrated battery compartment for easy battery replacement

• Graphic LCD display with individually adjustable backlight and contrast

• User-friendly plain text menu navigation

• Multilingual display – flexible switching

• Integrated USB interface : for easy programming and event log output

• Multiple input units can be combined in one system

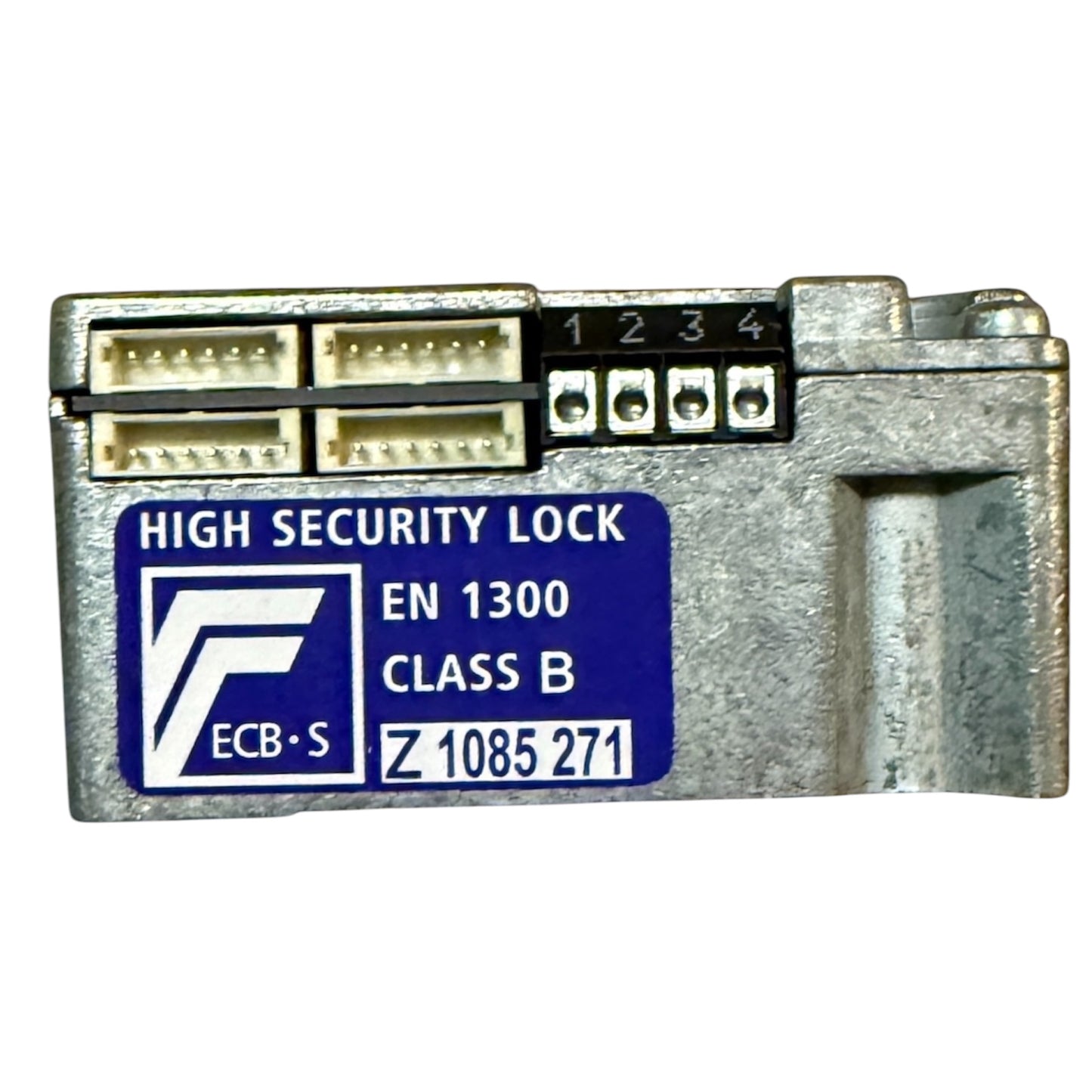

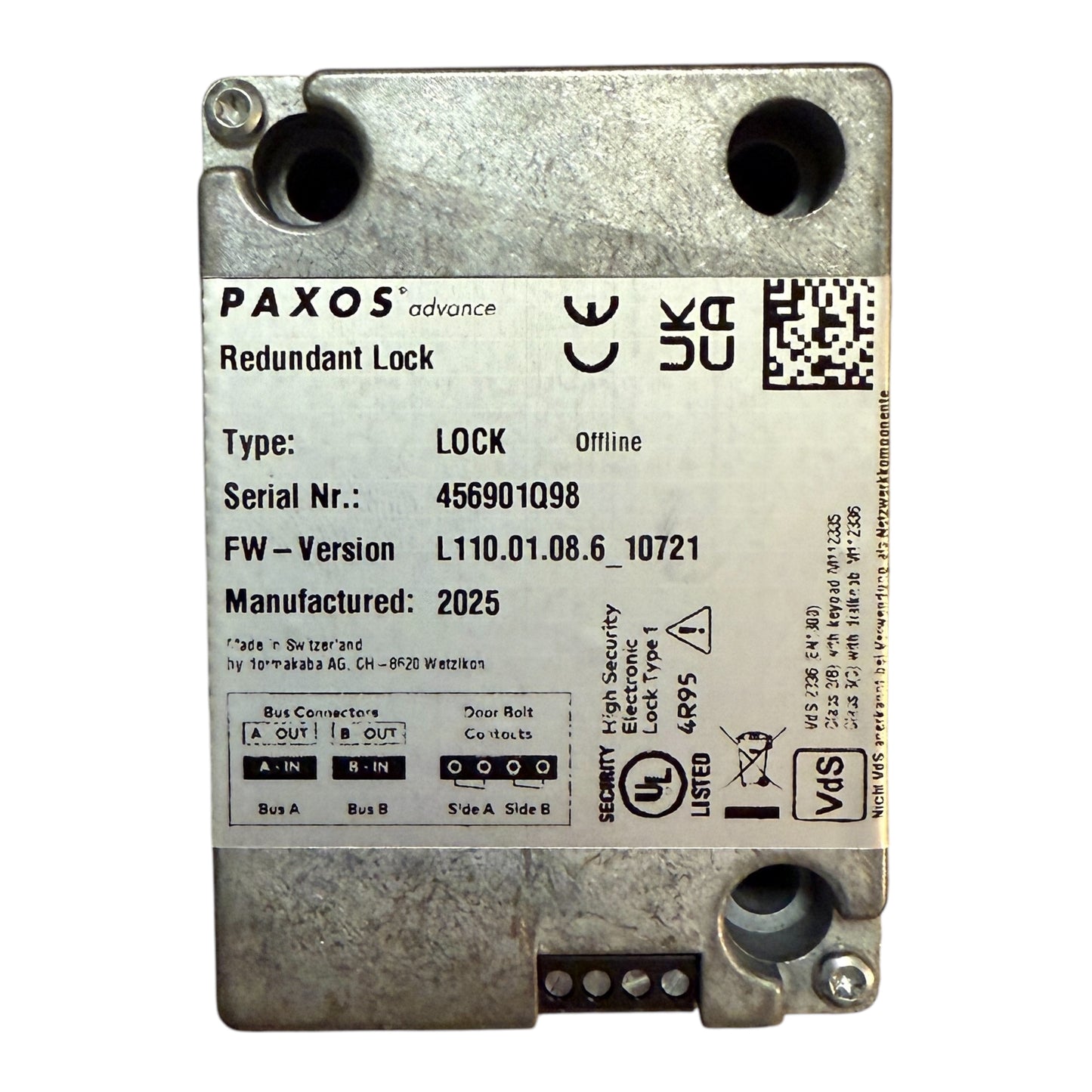

Lock:

• Bi-directional, motorized dead bolt

• Adjustment force: 30 N in both directions

• Bolt travel adjustable : 8.7 / 12 / 14 / 15 mm

• Latch with 2 M4 threaded holes and central M5 threaded hole

• Standard mounting hole pattern and lock body dimensions for easy integration

• Can be combined with several locks per system – as main or internal compartment locks
