Safe lock SECU S1000
Safe lock SECU S1000
Couldn't load pickup availability

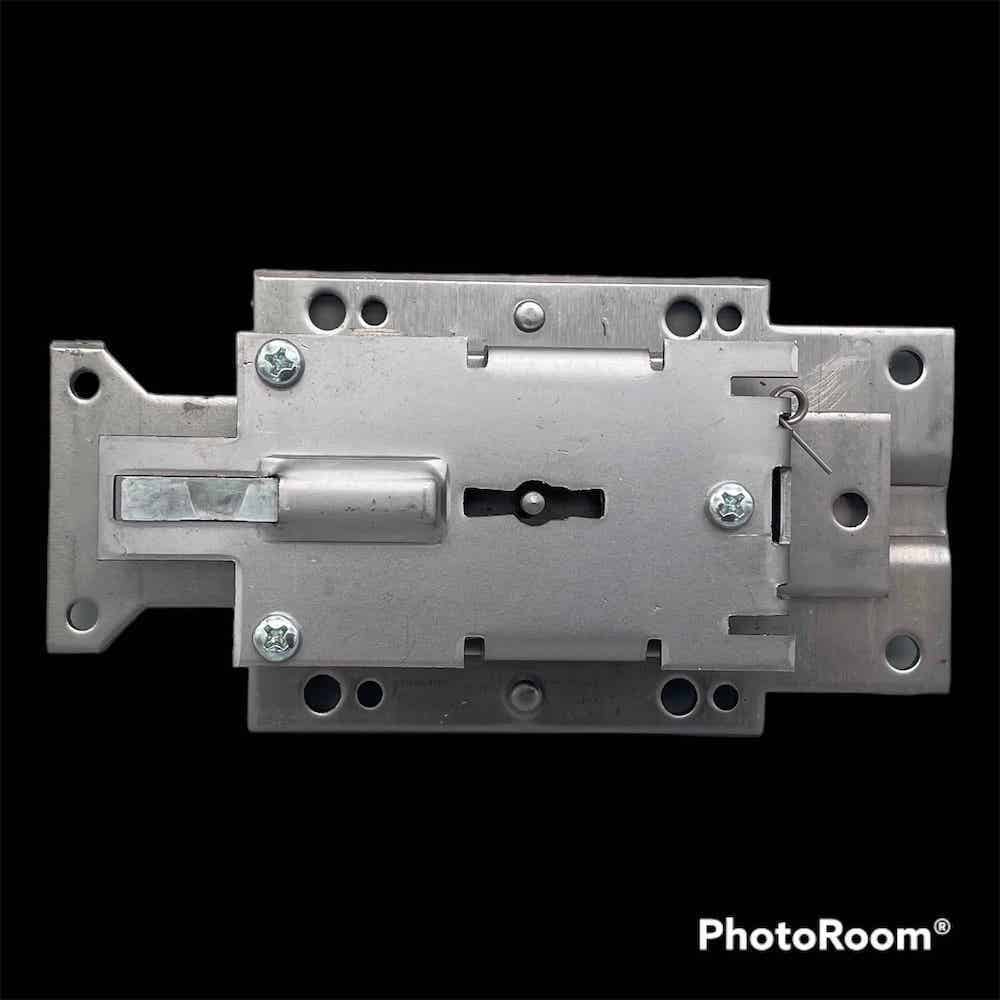

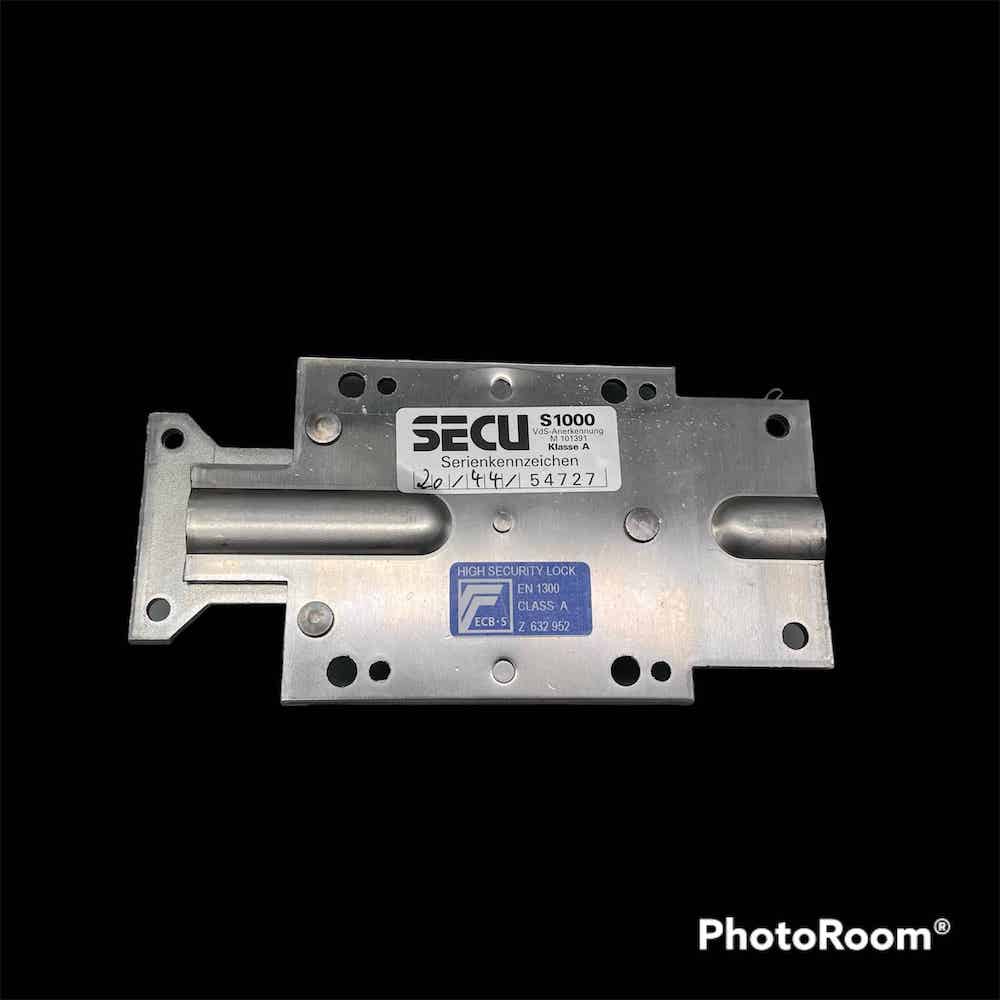

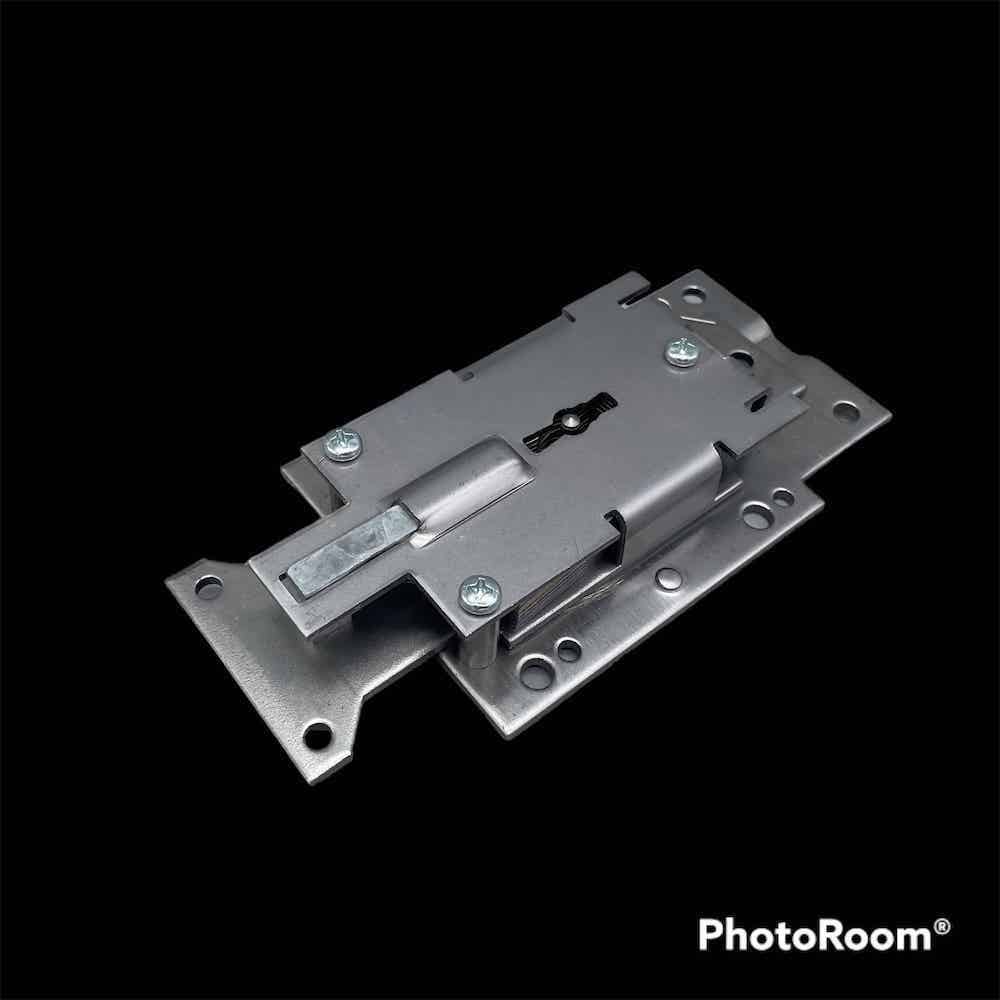

Safe lock SECU S1000 right
Popular safe lock that was installed in many old Burg Wächter safes and in several gun cabinets
Installation instructions for the double-bit security locks S1000
The locks are used in metal safes and are equipped with
M6 screws, strength class 8.8. The screws must only be tightened to a maximum torque of 10 Nm. A liquid threadlocker must be used to prevent the screws from loosening. The locks can be mounted with the bolt pointing to the left or up, or in the left-hand version S1000-li, with the bolt pointing to the right or up. The above illustration shows the dimensions of the lock.
There are two ways in which a boltwork can be released or operated with this lock:
-
Bolted boltwork: A boltwork is screwed to the lock bolt using M5 screws. The boltwork is activated by the lock.
-
The boltwork is not screwed on: The lock only enables the boltwork to move. This means that the boltwork is operated separately.
Everything about the double-bit security lock SECU S1000
Built-in lock for high security requirements, available in right- and left-hand versions. Also available as a bascule version with three locking directions.
-
two-turn security lock
-
9 locking mechanisms, 8 of which are forced
-
20 mm bolt stroke
-
100,000 executable locking combinations
- 3 kN strength against pushing back of the bolt
-
2 double-bit keys in standard design
-
VdS approval class 1
-
EN 1300 Class A
-
ECB‑S lock class A
The safe locks offered here are used and similar to the picture. Errors excepted.
